Advanced Color Calibration in SilverFast

Advanced Color Calibration in SilverFast

Advanced Color Calibration is a powerful feature in SilverFast that allows you to create an individual color profile for your scanner, ensuring accurate and consistent color reproduction in your scans. This process uses high-quality IT8 targets to calibrate your scanner, resulting in perfect colors right from the beginning.

Why Use Advanced Color Calibration?

Color calibration is essential for achieving professional-quality scans. By creating a custom profile for your specific scanner, you can:

  • Ensure accurate color representation
  • Compensate for any color shifts or inconsistencies in your scanner
  • Achieve consistent results across multiple scanning sessions
  • Save time on post-processing and color correction

Types of Calibration Targets

SilverFast supports different types of calibration targets depending on your scanning needs:

  • Advanced Reflective Target: Used for flatbed scanners when scanning photos or documents
  • Advanced Transparency Target: For scanning film or transparencies (excluding 35mm slides)
  • Advanced 3-slide Color Calibration Target: Specifically for 35mm transparencies

Step-by-Step Calibration Process

For Reflective Targets:

  1. Carefully remove the target from its protective covering and place it on the glass surface of your flatbed scanner.

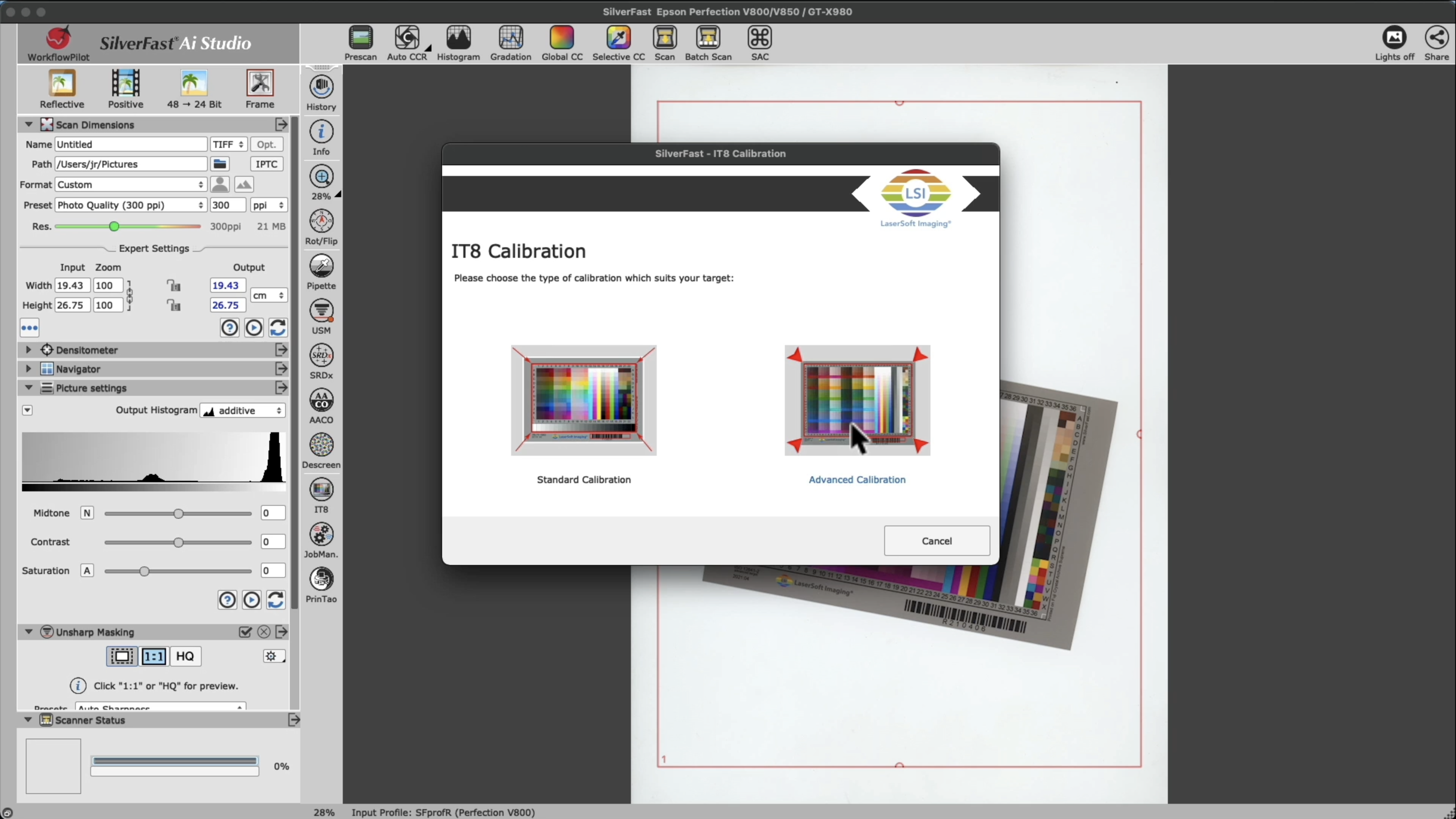

  2. Start SilverFast and click the calibration tool in the vertical toolbar.
  3. Select "Advanced Calibration" from the options menu.
  4. Follow the instructions provided by the calibration assistant, which will guide you through preview, frame-finding, and profile creation.

For Transparency Targets (excluding 35mm slides):

  1. Remove the target from its protective covering and place it in the scanner's corresponding holder. If no holder is available, place the target directly on the scanner's glass surface.
  2. Follow steps 2-4 as described for reflective targets.

For 35mm Slide Targets:

  1. Insert the 3 targets from your 35mm slide set into the scanner's holder. For scanners with automatic feeding, add the slides to the empty JobManager before proceeding.
  2. Start SilverFast and click the calibration tool in the vertical toolbar.
  3. Select "Advanced 3 Slide Calibration" from the options menu.
  4. Follow the calibration assistant's instructions for preview, frame-finding, and profile creation.

Note: For film scanners with manual feeding, insert the slides one by one as instructed by the assistant.

After Calibration

Once the calibration process is complete, SilverFast will automatically activate your individual color profile. This profile will be used for all subsequent scans, ensuring accurate color reproduction.

Tips for Best Results

  • Handle calibration targets with care to avoid fingerprints or damage.
  • Ensure your scanner's glass surface is clean before calibration.
  • Perform calibration in a room with consistent lighting conditions.
  • Recalibrate periodically or when you notice changes in your scanner's color output.

Troubleshooting

If you encounter issues during the calibration process:

  • Make sure you're using the correct target type for your scanner and material.
  • Check that the target is properly positioned and free from dust or debris.
  • Ensure your scanner is properly connected and recognized by SilverFast.
  • If problems persist, consult the SilverFast manual or contact technical support for assistance.

Compatibility and Requirements

Advanced Color Calibration is exclusively available in SilverFast Ai Studio. This premium feature is not included in other editions such as SE or SE Plus. The specific options within the Advanced Color Calibration feature may vary depending on your scanner model.
If you're using a different edition of SilverFast and require Advanced Color Calibration, you may need to upgrade to SilverFast Ai Studio to access this feature. Other versions of SilverFast offer alternative color correction tools, but the IT8-based Advanced Color Calibration is unique to the Ai Studio edition.

Conclusion

Advanced Color Calibration is a valuable tool for achieving professional-quality scans with accurate color reproduction. By following the simple steps outlined above, you can create a custom color profile for your scanner, ensuring consistent and high-quality results in all your scanning projects. Whether you're a professional photographer, archivist, or enthusiast, this feature will help you get the most out of your scanner and SilverFast software.

SilverFast Advanced Color Calibration

Remember, regular calibration is key to maintaining optimal color accuracy. Make Advanced Color Calibration a part of your scanning workflow to ensure your digitized images always look their best.
