How to Properly Place Photographic Film or Negatives on Your Scanner

How to Properly Place Photographic Film or Negatives on Your Scanner

Correctly positioning your film or negatives on your scanner,  including knowing which side to scan, is crucial for achieving high-quality scans with SilverFast. This guide will help you understand the structure of film, how to place it correctly on your scanner, and why proper placement is essential for optimal results.

The Anatomy of Photographic Film

Before we dive into the placement process, it's important to understand that photographic film has two sides:

  • Substrate side: This is usually the carrier material, often made of a clear plastic. It's typically shiny and reflective.
  • Emulsion side: This is the side containing the actual photographic image. It usually appears duller and less reflective.

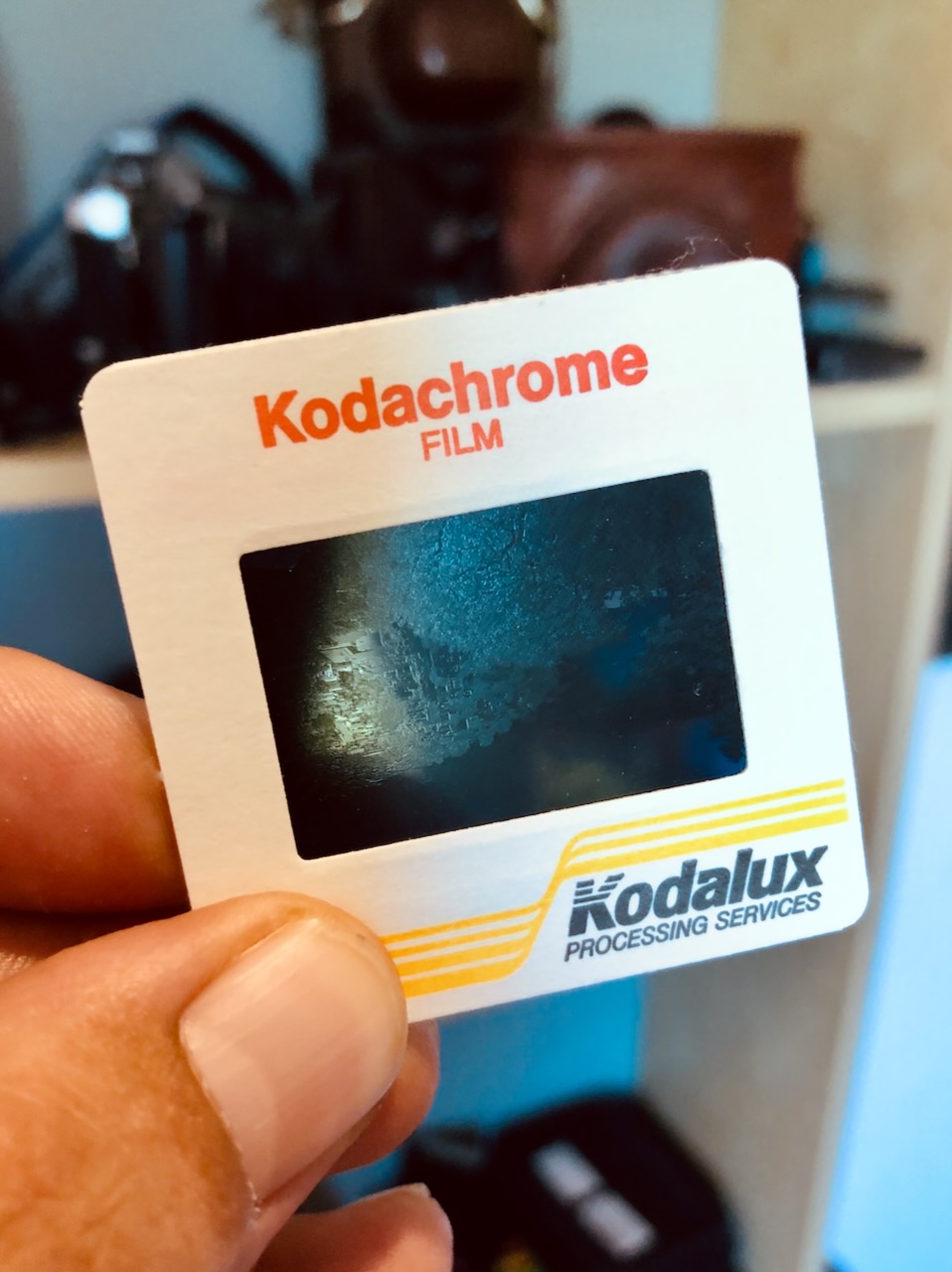

Shiny substrate side of a Kodachrome

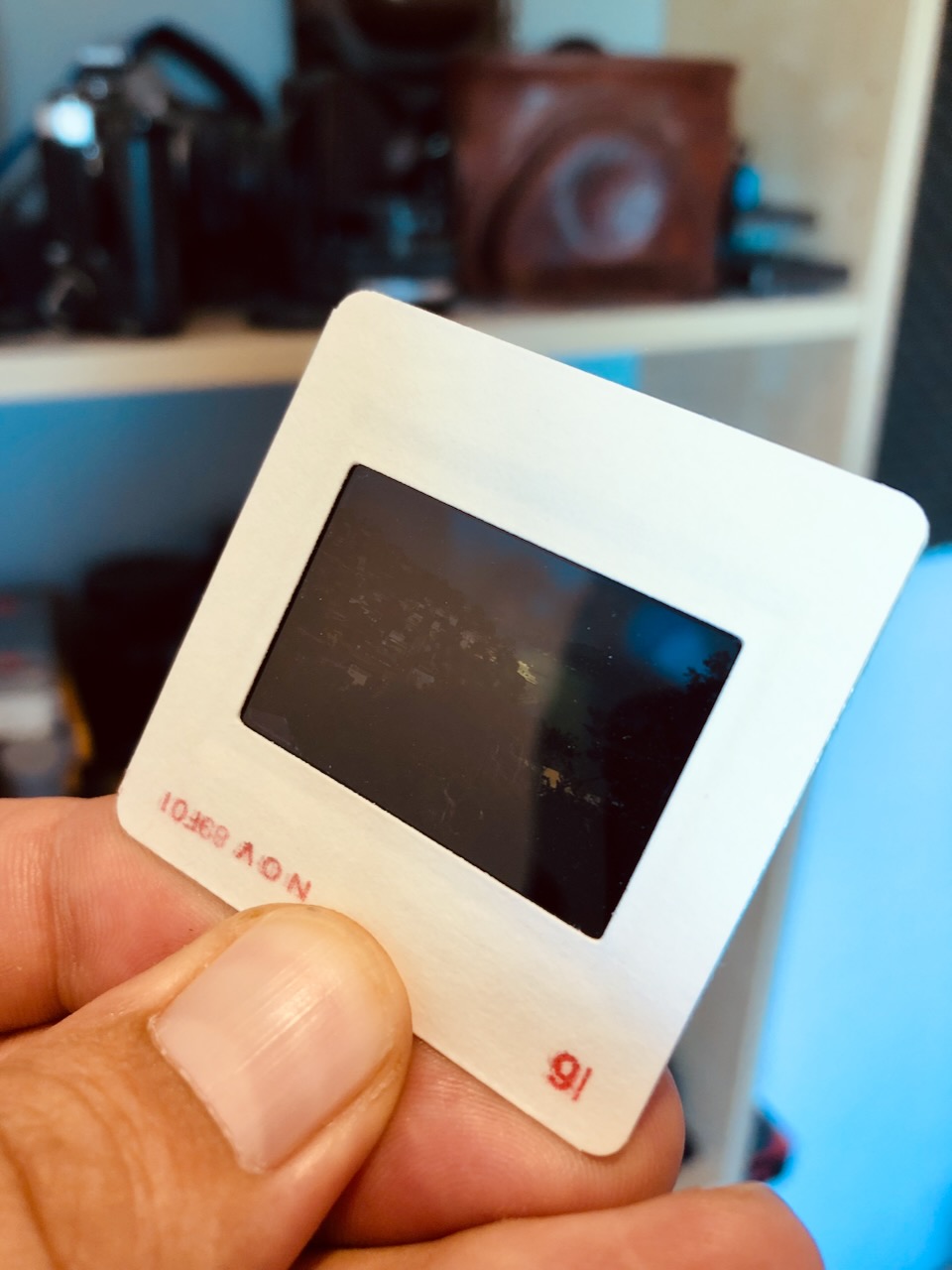

Emulsion side of a Kodachrome silde



Knowing which side is which is crucial for proper placement on your scanner and for achieving the best possible scan quality.

The Impact of Light Reflection on Scan Quality

One of the key reasons for proper film placement is to minimize unwanted light reflection. The shiny substrate side of the film can cause increased light reflection to the scanner's CCD (Charge-Coupled Device) sensor, which can negatively impact scan quality. This reflection can lead to several issues:

  • Reduced contrast in the scanned image
  • Loss of fine details, especially in shadow areas
  • Potential color shifts or inaccuracies
  • Overall decrease in image sharpness

By placing the film with the emulsion side down (towards the scanner glass), you minimize these reflections and ensure that the scanner captures the most accurate representation of your image .

Steps for Correct Film Placement

  1. Clean your scanner: Ensure your scanner's glass surface is clean and free from dust or fingerprints.
  2. Identify the emulsion side:
    • For negatives: The emulsion side usually appears duller and less shiny.
    • For slides: The emulsion side is typically on the side with the image that appears correct (not reversed).
  3. Position the film: Place the film on the scanner with the emulsion side facing down towards the scanner glass. This ensures that the duller, less reflective side is in contact with the scanner, reducing unwanted light reflections.
  4. Use film holders: If your scanner came with film holders, use them for added stability and to keep the film flat.
  5. Align properly: Ensure the film is straight and aligned with the scanner's markings or guides.

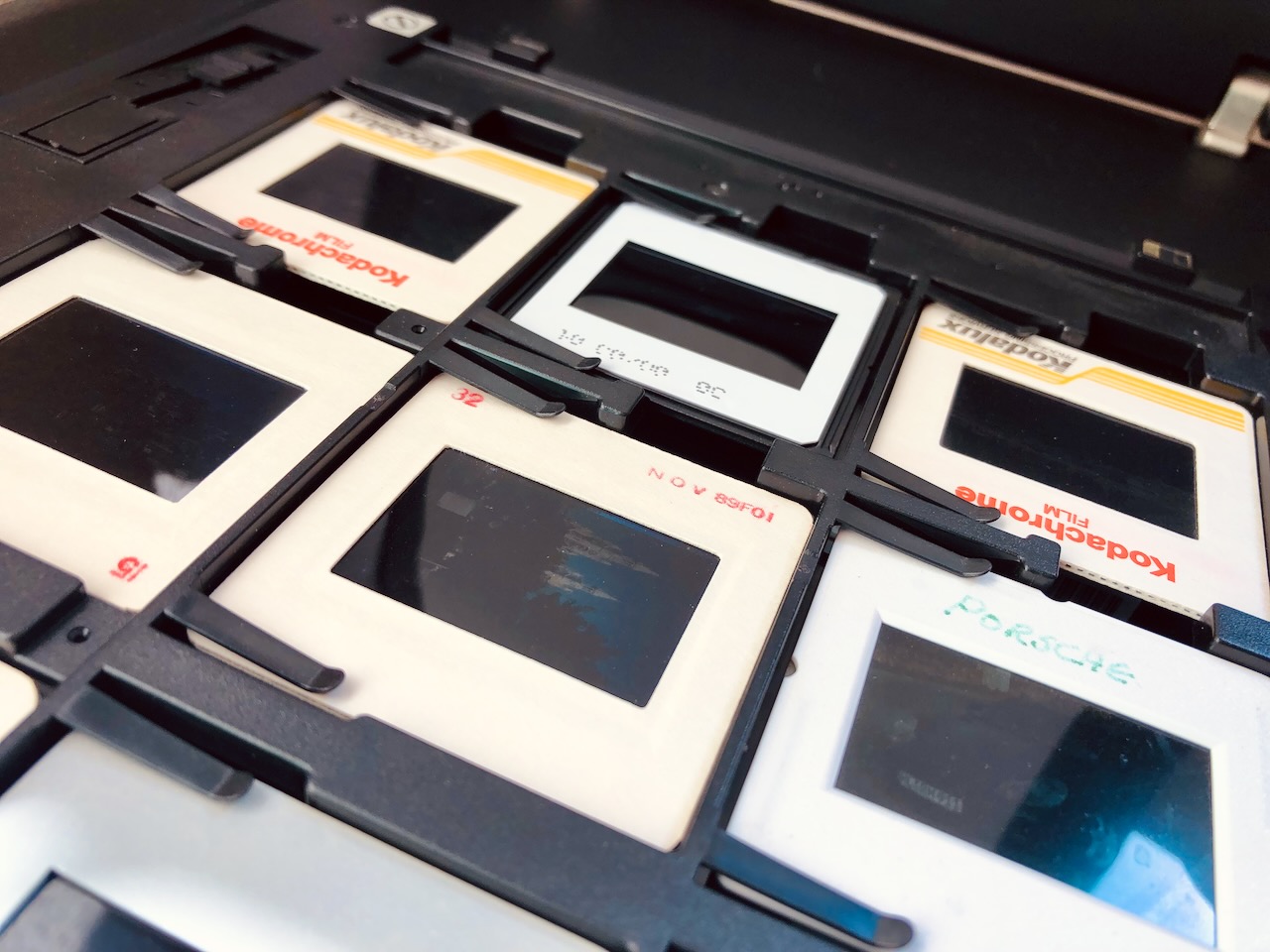

A bunch of slide film shiny side up on the scanner.

Why Proper Placement Matters

Correct film placement is crucial because:

  • It ensures the sharpest possible scan by having the emulsion in direct contact with the scanning surface.
  • It prevents potential image reversal issues, especially important for text or recognizable objects in the image.
  • It reduces the chance of Newton rings (interference patterns) that can occur when scanning film.
  • It minimizes unwanted light reflection from the shiny substrate side, improving overall scan quality.

Tips for Best Results

  • Handle film by the edges to avoid fingerprints and scratches.
  • Use lint-free gloves when handling film for extra protection.
  • If scanning multiple frames, consider using SilverFast's BatchScan feature for efficiency.
  • For curled film, you may need to use additional weight or tape to keep it flat (be careful not to damage the film).
  • Consider using anti-reflection coatings or filters if your scanner supports them, to further reduce unwanted reflections.

Troubleshooting Common Issues

Problem: Scanned image appears reversed or mirrored.
Solution: Double-check that you've placed the film with the emulsion side down.

Problem: Newton rings appear in your scan.
Solution: Try slightly lifting one corner of the film or using anti-Newton ring glass if available for your scanner.

Problem: Scans appear blurry or out of focus.
Solution: Ensure the film is lying completely flat on the scanner surface.

Problem: Scans show low contrast or loss of detail.
Solution: Verify that the film is placed with the emulsion side down to minimize reflections from the substrate side.

"The secret to successful film scanning is all in the preparation. Take the time to understand your scanner, master the settings, and let the image unfold before your eyes. The journey of discovery is half the fun."
